Introduction
installation of sprinkler irrigation system is one of the most effective ways to water lawns, gardens, and agricultural fields efficiently. A well-installed system delivers water evenly, conserves resources, and cuts down on the time and effort of manual watering.
This guide walks through the entire process — from understanding how the system works to planning your layout to the actual installation steps, common mistakes to avoid, realistic costs, and ongoing maintenance. If you want to see the bigger picture first, check out our guide on the benefits of a sprinkler irrigation system.
Table of Contents
What Is a Sprinkler Irrigation System?
A sprinkler irrigation system is a watering method that distributes water over crops, lawns, or gardens in small droplets — similar to natural rainfall. It uses pipes, pumps, and sprinkler heads to spray water evenly across an area, letting you cover large or small spaces without manual watering.
How It Works
Water is pumped through a network of pipes under pressure and released through sprinkler heads placed at strategic points. These heads rotate or spray in a circular or fixed pattern to cover the target area. Water pressure plays a major role in performance — proper pressure means even distribution, correct spray distance, and less water loss. For guidance on water-efficient irrigation practices, the EPA WaterSense program offers detailed recommendations for homeowners.
Main Components
- Water source – A well, reservoir, canal, or municipal supply.
- Pump – Provides the pressure needed to move water through the system.
- Mainline and lateral pipes – Transport water from the source to the sprinklers.
- Control valves – Regulate water flow to different zones.
- Sprinkler heads – Spray water over the target area.
- Controller (optional) – Automates watering schedules.
Where It’s Used
Sprinkler irrigation systems are common on agricultural fields, vegetable farms, residential lawns and gardens, landscaping projects, and sports grounds.
Benefits of Installing a Sprinkler Irrigation System
- Efficient water usage – Water reaches the soil in measured amounts rather than flooding, conserving resources and lowering water bills.
- Uniform water distribution – Proper installation prevents dry patches and overwatering.
- Saves labour and time – Large areas are watered automatically instead of requiring manual effort.
- Adaptable to different crops and soils – Systems can be customised for soil type, crop needs, and terrain.
- Promotes healthy plant growth – Consistent watering reduces plant stress and supports stronger root development.
- Reduces soil erosion and waterlogging – Gentle water application protects soil structure compared to flooding.
Types of Sprinkler Irrigation Systems
Portable systems are lightweight and easy to move, making them ideal for small farms, vegetable gardens, and temporary watering needs.
Permanent (fixed) systems have pipes and sprinklers installed underground or above ground for consistent, low-maintenance coverage — well suited to lawns, orchards, and commercial farms.
Centre pivot systems rotate on wheels to irrigate large circular areas, commonly used on large agricultural fields and grain crops.
Travelling gun systems use high-pressure sprinklers mounted on wheels that move across a field, covering large areas quickly – good for pastures or large vegetable farms.
Solid set systems are permanently fixed in a grid layout, offering precise irrigation zones that are easy to automate. Common on lawns, golf courses, orchards, and commercial farms.
Tools & Materials You’ll Need
Pipes – Mainline pipes carry water from the source to sprinkler zones; lateral pipes connect the mainline to individual sprinkler heads. PVC or polythene (PE) pipe is standard for durability and ease of installation.
Sprinkler heads – Rotary, spray, or impact heads are chosen based on coverage area and water pressure.
Valves – Manual or automated (electric/hydraulic), used to control water flow to each zone.
Pump – Needed if your water source can’t provide adequate pressure on its own, especially for larger areas.
Installation tools – a pipe cutter, Teflon tape, wrenches and pliers, trenching tools or a shovel, and a pressure gauge to monitor pressure during setup.
Controller (optional) – Automates your watering schedule and reduces manual labor. For professional standards on system design and equipment, the Irrigation Association publishes certification guidelines and best practices for both DIY and professional installers.
Step-by-Step Installation Process
Step 1: Plan and Design the Layout
Start by measuring the total area that needs irrigation and dividing it into zones for better control and water efficiency. Identify your water source and measure the available pressure and flow rate — this determines how many sprinklers you’ll need and what type. Mark planned sprinkler positions to ensure overlapping coverage for even watering, and factor in terrain and soil type: sloped areas may need reduced pressure to prevent runoff, while sandy or clay soils absorb water at different rates and may require adjusted spacing.
Step 2: Mark and Dig Trenches
Use spray paint or stakes to mark where your pipes will run based on your layout plan. Dig trenches roughly 6–12 inches deep for lateral pipes, depending on pipe size and local frost depth, with mainline trenches sometimes deeper. Slope trenches slightly to allow for proper drainage and avoid pooling.
Step 3: Lay the Mainline and Lateral Pipes
Connect your mainline pipe from the water source towardss the irrigation zones, then run lateral pipes off the mainline towardss each sprinkler location. Use PVC cement or the appropriate fittings for your pipe material, and wrap threaded connections with Teflon tape to prevent leaks. Keep pipes at a consistent depth and avoid sharp bends that could restrict flow.
Step 4: Install Valves and Sprinkler Heads

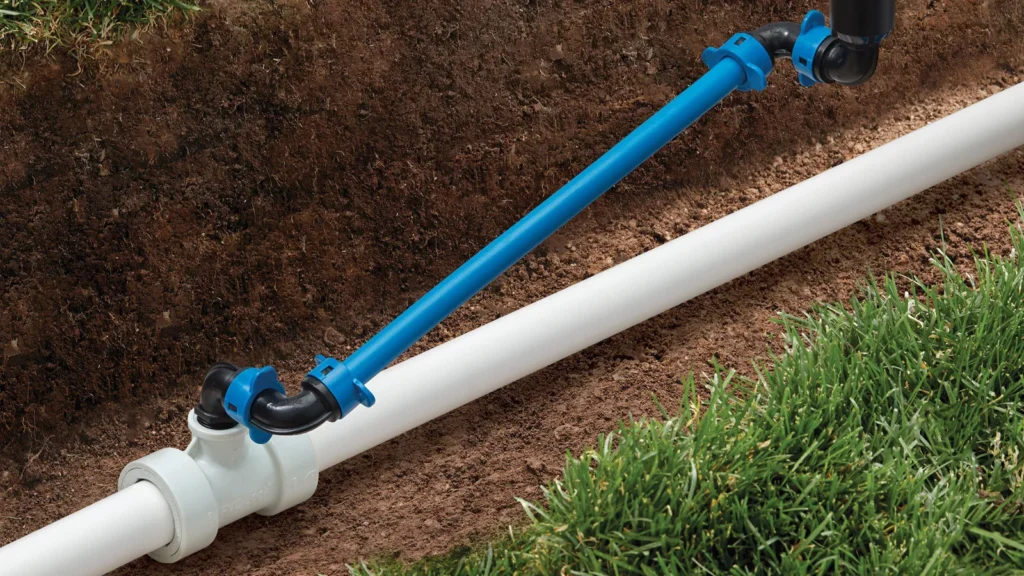

Install a control valve at the start of each zone so it can be operated independently. Attach sprinkler heads (or their risers) at the marked positions, keeping them level with the finished grade of your lawn or field. If you’re using an automated controller, run the wiring from each valve back to the controller location now, before backfilling.
Step 5: Test the System Before Burying Pipes
Turn the water on slowly and run each zone individually. Check every sprinkler head for proper rotation, spray pattern, and pressure, and inspect all joints and connections for leaks. This is the easiest point to fix a mistake — once trenches are backfilled, repairs become far more time-consuming.
Step 6: Backfill and Finish the Installation
Once you’ve confirmed everything works correctly, backfill the trenches, tamping the soil down in layers to avoid future settling. Reseed or patch any disturbed grass, and if you’re using a controller, set your zone schedules based on plant type, soil, and local watering restrictions.
Common Mistakes to Avoid
Incorrect sprinkler spacing – placing heads too far apart creates dry patches, while placing them too close wastes water. Always follow manufacturer spacing guidelines for your sprinkler type and pressure.
Ignoring water pressure — Too little pressure causes weak, uneven spray; too much can damage pipes and heads. Measure pressure before choosing equipment.
Poor pipe connections — loose fittings and improperly sealed joints lead to leaks. Use Teflon tape correctly and avoid forcing pipes into fittings.
Skipping zoning – putting all sprinklers on a single zone overloads the system. Dividing areas into zones matched to water flow improves efficiency and reduces wear.
Overlooking terrain and soil conditions – Different soils absorb water at different rates, and sloped areas are prone to runoff if not managed properly.
Not testing before finishing — Skipping the test step can hide leaks or coverage gaps that are much harder to fix once everything is buried.
Cost of Installing a Sprinkler Irrigation System
Several factors affect the total cost: the size of the area, the type of system (portable and DIY setups are cheaper than permanent or automated ones), whether a pump is needed, the quality of materials used, and whether you hire a professional or install it yourself.
Project Size Estimated Cost Small garden/lawn (DIY or simple system) $500 – $1,500 Medium lawn/vegetable farm (permanent, multi-zone) $1,500 – $5,000 Large agricultural field (automated centre pivot) $5,000 – $20,000+
Prices vary by region, materials, and local labour rates.
To keep costs down: plan your layout carefully to avoid unnecessary piping, choose durable materials that reduce long-term repairs, consider DIY installation for smaller areas if you have basic plumbing skills, and get multiple quotes if you’re hiring a professional for a larger job.
Maintenance After Installation

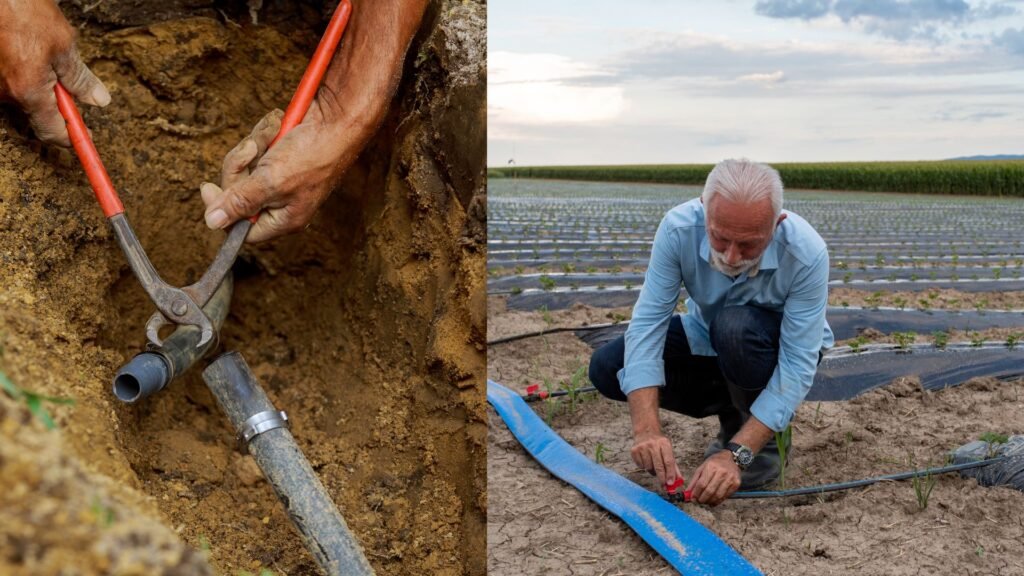

Once your system is installed, a few habits keep it running efficiently for years. Check pipes, joints, and valves regularly for leaks, and repair damaged sections promptly to avoid water loss and soil erosion. Clean sprinkler heads at least once a season to clear dirt or mineral buildup. Monitor water pressure and adjust regulators if sprinklers are underperforming or over-spraying. Test automatic valves and controllers periodically, and replace batteries as needed. In freezing climates, drain the system before winter to prevent pipe damage, and check performance closely during peak summer use to avoid overwatering. Replace worn sprinkler heads, valves, or pipe sections as soon as you notice issues.
For a deeper look at seasonal care, see our guide on how to maintain a sprinkler system.
Conclusion
Installing a sprinkler irrigation system is a worthwhile investment for efficient water management, healthier plants, and greener lawns. Careful planning, correct installation, and choosing the right components make the difference between a system that runs smoothly for years and one that needs constant repairs.
Avoid the common mistakes covered above, test thoroughly before backfilling, and stay on top of routine maintenance — your system will reward you with consistent performance and lower water bills for years to come.
FAQs
How long does installing a sprinkler irrigation system take? Small gardens can be done in 1–2 days as a DIY project. Medium lawns or vegetable farms typically take 3–5 days, while large agricultural fields with professional installation can take 1–2 weeks.
Can I install a sprinkler irrigation system myself? Yes, for small gardens or lawns using portable or basic systems. Larger or automated systems are usually better handled by professionals to get zoning, pressure, and wiring right.
What’s the ideal water pressure for a sprinkler irrigation system? Most systems work efficiently between 25 and 50 PSI. Check your specific sprinkler head’s manufacturer specifications, since requirements vary by model.
How deep should sprinkler pipes be buried? Lateral pipes are typically buried 6–12 inches deep, both to protect them and to allow for easier future maintenance. Mainlines can go deeper depending on soil type and local frost line.
How often should I maintain the system after installation? Inspect sprinklers, valves, and pipes at least once a month, clean heads and check for leaks each season, and perform seasonal tasks like winter draining to extend the system’s life.
Can sprinkler systems work for any type of crop or lawn? Yes, but the system type and spacing should match the crop, soil, and terrain. Permanent systems suit large-scale crops well, while portable systems work better for small gardens or lawns.
